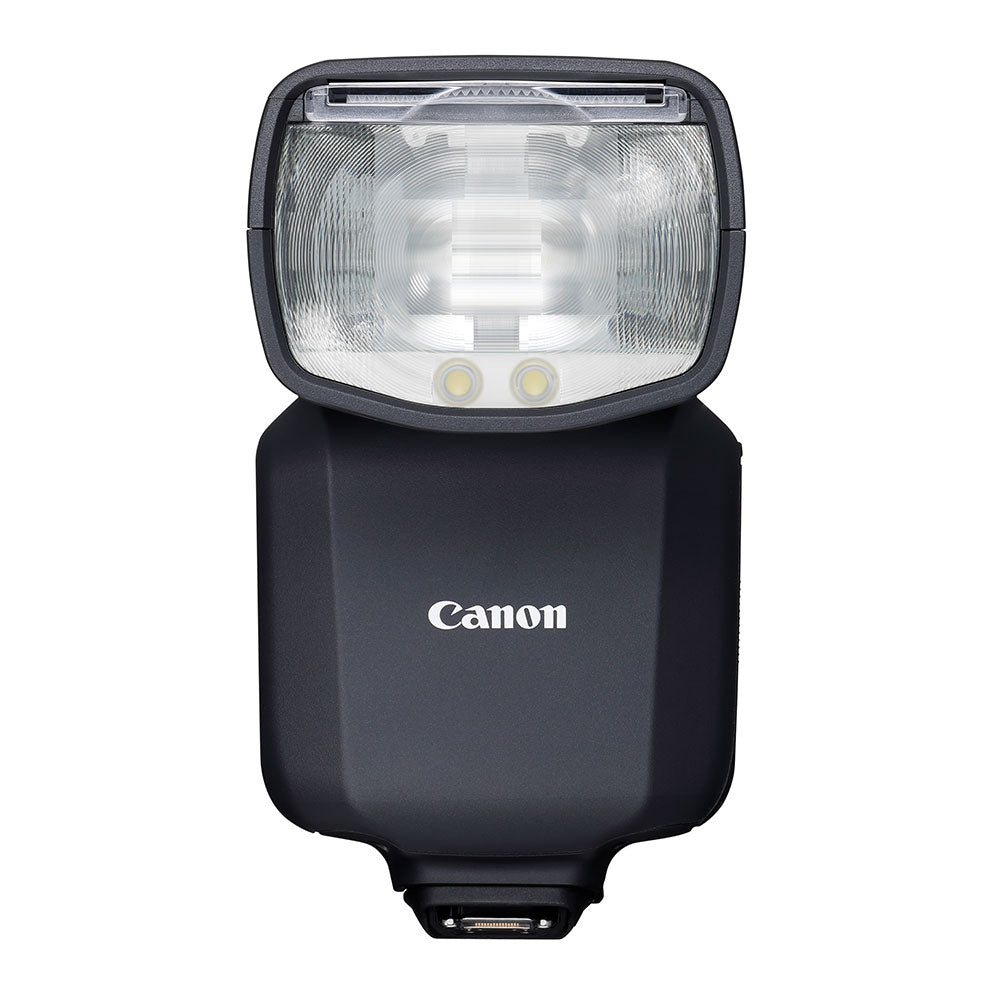

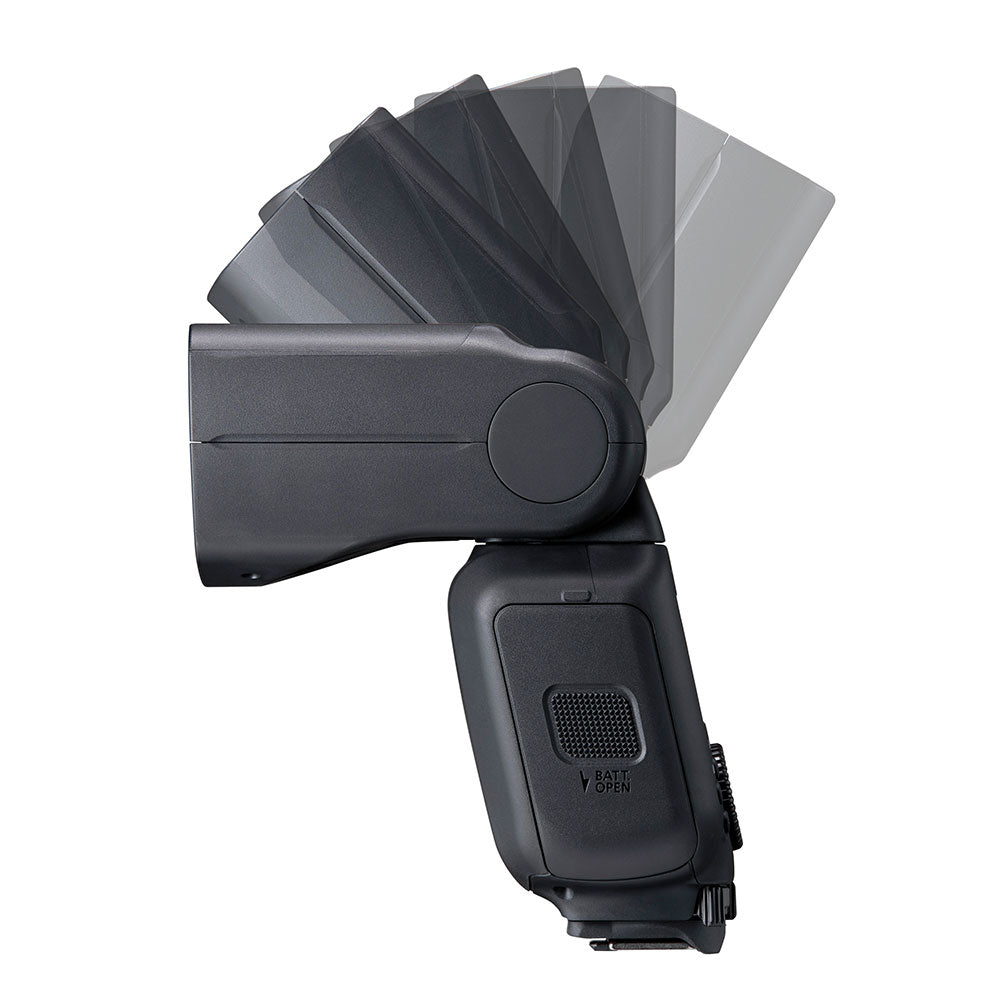

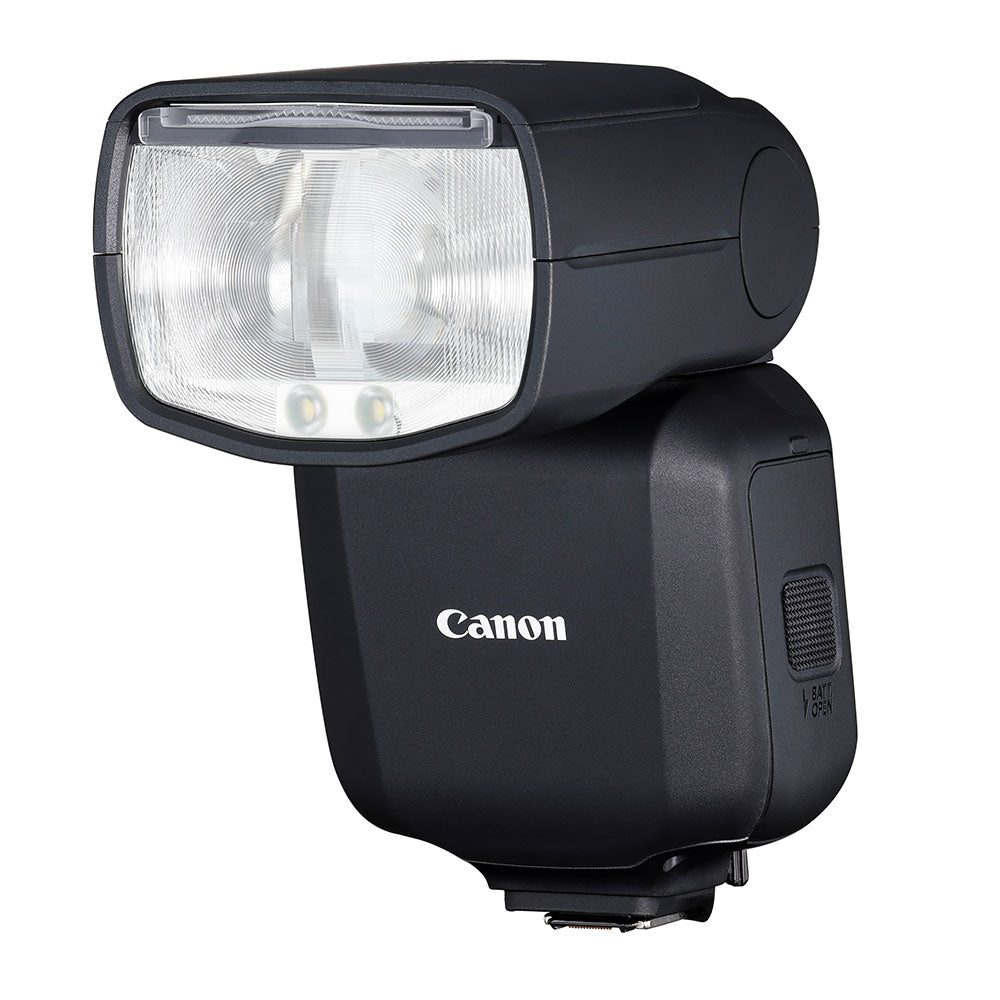

Canon’s powerful Speedlite brings all the features and performance of the previous-generation Speedlite EL-5, and adds even more robust wireless, off-camera capabilities — extending its potential range from the transmitter or sender flash unit to 164 feet (nearly 50m). Flash performance is excellent, beginning with its flash coverage and power. Automatic or manual zooming of the flash head can match the coverage of 24mm to 200mm or longer lenses, on a full-frame camera (equivalent to 15mm–125mm+ lenses on an APS-C sensor camera). Maximum flash power delivers a Guide Number of approximately 169.9 (in feet) or 60 (in meters), zoomed to the 200mm position. That translates into an effective flash distance range, at its 35mm zoom setting, of up to 42 feet, at f/2.8 and ISO 100 — that doubles to approximately 84 feet at ISO 400.
The good news doesn’t end there. A powerful Canon LP-EL rechargeable battery pack delivers up to 350 flashes at full manual power — and many more at reduced power settings — along with 1.2 second flash recycling (again, at full manual power). There’s a built-in, continuous LED modeling lamp, to preview lighting coverage and shadows. And it’s fully integrated into Canon’s Wireless E-TTL flash system, compatible with all previous radio-based Canon wireless flash units and transmitters. Likewise, it’s fully compatible with Canon EOS cameras equipped with the advanced Multi-function Shoe design, permitting extensive integrated control between camera and Speedlite. And for those who prefer to use the controls on the flash, the EL-5 (Ver. 2) retains the superb control dial, joystick, and LCD screen from the original EL-5.
IMPORTANT Speedlite EL-5 (Ver. 2) can only be shoe-mounted to Canon EOS mirrorless cameras with Canon’s Multi-function Shoe design. It cannot be attached to any EOS Digital SLR cameras, or to EOS R-series cameras using the original, 5-pin hot shoe connector design.
A Performance Flash for Today’s Advanced Imagemaker
The Speedlite EL-5 (Ver. 2) receives some of the best features of the flagship Speedlite EL-1 flash to improve the agility, and versatility of the working imagemaker, or advanced photographer. With the use of the Canon LP-EL rechargeable lithium-ion battery pack, built-in Modeling light (LED), impressive flash output range, and in adopting updated user interface controls, and customization – the Speedlite EL-5 (Ver. 2) is the ideal tool to elevate your flash photography.
High-Speed Charging and Reliable Exposures
The high-speed charging system of the Speedlite EL-5 (Ver. 2) is truly impressive and is designed to meet the creative needs of the advanced image maker. With the use of the LP-EL rechargeable lithium-ion battery pack, recycle times are greatly reduced even when compared to a Speedlite 600EX II-RT using the CP-E4N battery pack.
With the ability to recharge in just 1.2 seconds during full power flash sequences in Normal flash mode, and recharging in approx. 0.1 secondsFootnote2 at minimum power in Normal flash mode – the Speedlite EL-5 (Ver. 2) is a high-performance flash that can deliver stable flash output even during high action situations. At full power, it can be fired up to 95 continuous timesFootnote3 or more!
Battery Pack LP-EL is charged with the same Canon LC-E6 charger that’s used for the LP-E6-type batteries used in many EOS cameras.
Versatile Flash Output
Any tool will only be valuable, if there are opportunities to use it to its full potential, and with the Speedlite EL-5 (Ver. 2) whether shooting indoors or out, dark situations or bright, or with a close-up or far subject – it has numerous features to handle challenging situations with ease.

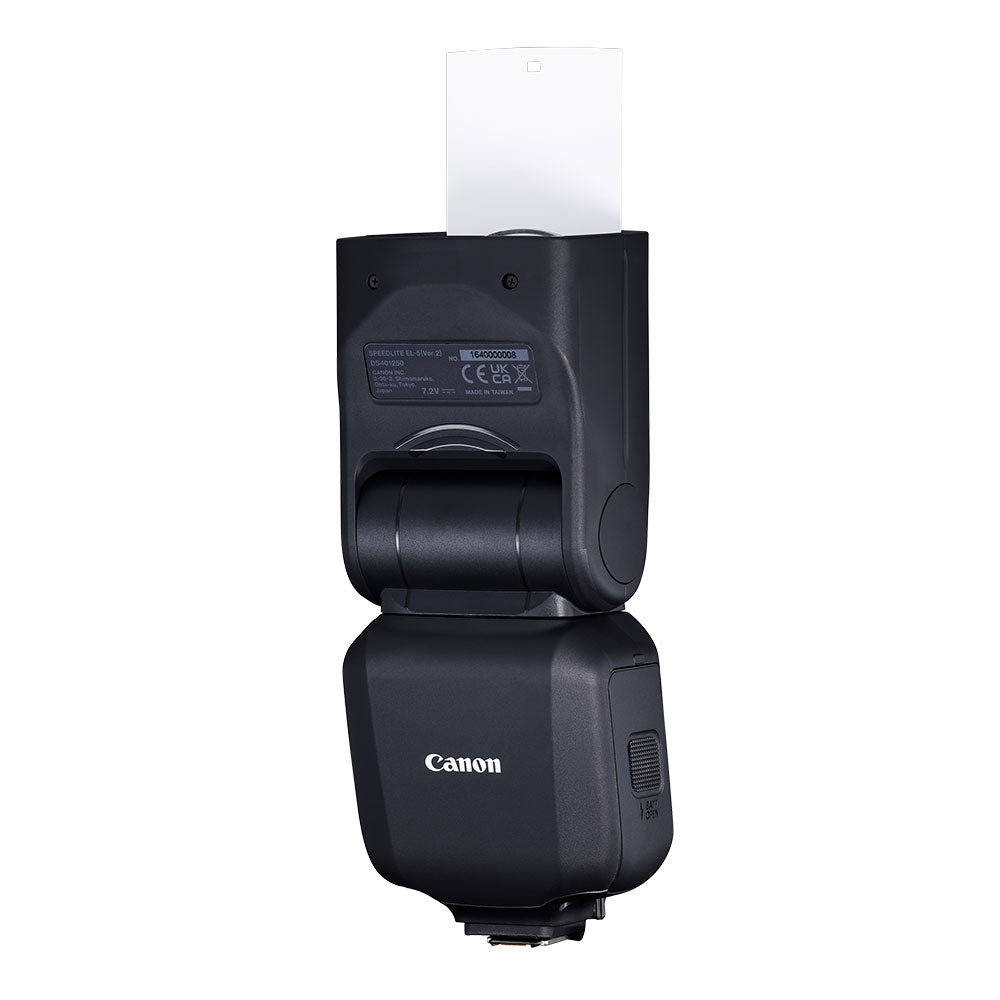

Whether you need the maximum flash output to capture a deep depth of field scene in a dark environment, or just a kiss of fill-light to reduce the shadows on the face of a subject – the Speedlite EL-5 (Ver. 2) has you covered with an extended flash output range of 1/1 to 1/1024th power (a three stop improvement compared to Speedlite 600EX-II RT – 1/1-1/128th), with full 1/1 manual power emitting a guide number of 60m/169.9ft @200mm (at approx. ISO 100). Working with a variety of lenses is also easy, as the Auto zoom functionality allows flash coverage from 24-200mm. The additional 14mm wide panel can also be used for wider-angle flash coverage when working beyond 24mm. With a higher-precision flash output the Speedlite EL-5 will be a trusted companion for creative flash situations.
Multi-Function Shoe Connection
The new digital connector at the bottom of the Speedlite EL-5 (Ver. 2)’s Multi-function shoe “foot” allows for greater flash to camera communication. In the case of the EL-5 you get superior coordination between the camera and the flash unit compared to previous Canon Speedlites, including the “Menu direct” function, Customize button function, and Custom flash modes. Gold-plated terminals in the shoe improve connection quality, and the installation status is checked before starting communications, to ensure reliable connection to cameras such as the Canon EOS R3, R7, R10, and R6 Mark II.
Custom Flash Modes C1, C2, C3
Changing flash modes and settings on the fly in high-stress situations can be extremely challenging – and with the addition of Custom Flash modes, the ability to instantly switch between registered setting including E-TTL auto flash to Manual flash and individual values is now possible. This is extremely helpful in situations where ambient light changes frequently (Ex. shooting a bride and groom kissing on the alter, then switching exposure to a backlit scene as they walk out of the church.) This is also highly desirable when your priority for lighting changes from lighting a scene, to lighting only a face. This versatility can also link C1, C2, and C3 at the flash to C1, C2, and C3 at the camera on compatible cameras – allowing the recall of flash settings registered in Speedlite EL-5 (Ver. 2) using the camera’s shooting mode. By registering the flash settings in-advance the flash mode is directly switched using the camera’s shooting mode setting.
Intuitive UI Design

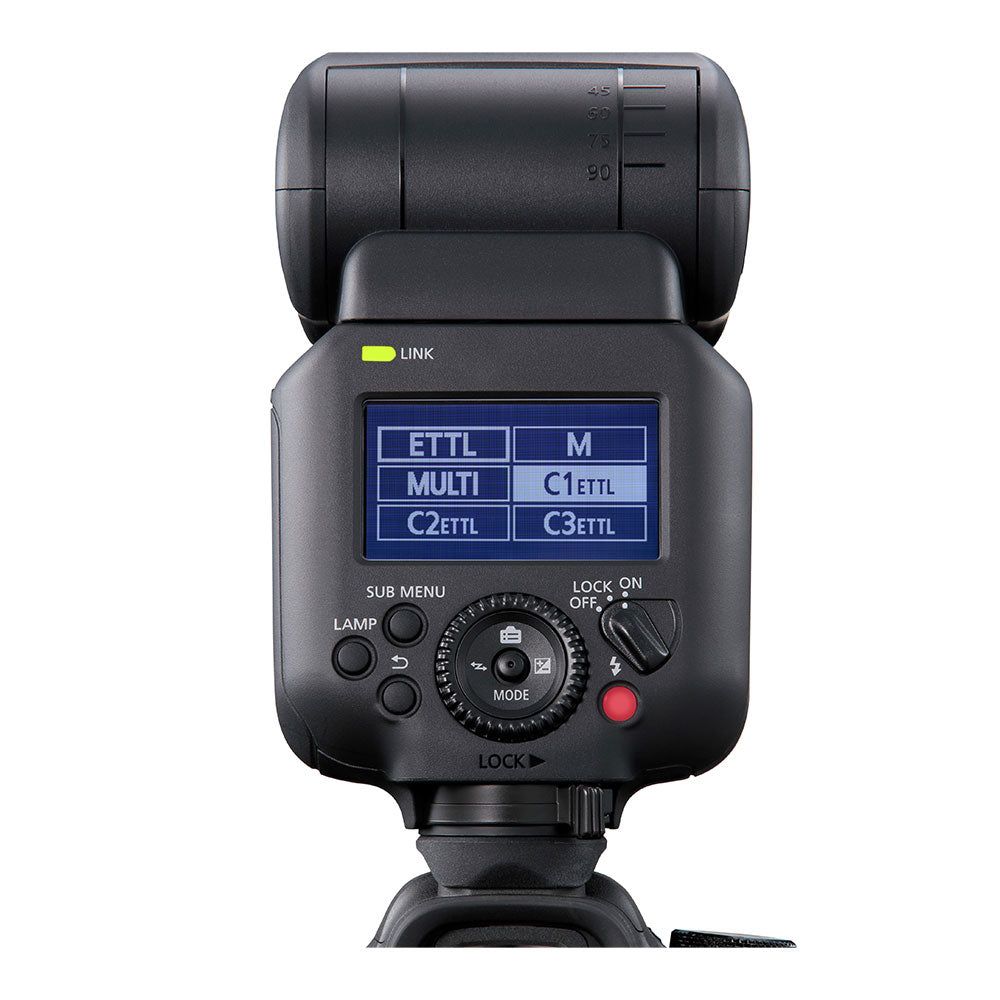

Speedlite EL-5 (Ver. 2) sports a modern and refined look, featuring the same joystick, Select dial and LCD panel as the flagship Speedlite EL-5 (Ver. 2) – creating an intuitive user interface, that enables quick adjustments while shooting. With Camera-linked functions available through use of the “Speedlite menu direct button” in compatible EOS R-series camera’s “Customize Buttons” menu, the use of the joystick can easily display “Flash function settings” or even “Quick flash group control” screens on the camera LCD screen for access to quick adjustments. Additionally, with the high visibility LCD panel on the Speedlite EL-5 (Ver. 2), it’s easy to check settings, and even available battery during high action situations.
Modeling Lamp
Previewing the effect of a flash has become easier with the addition of a built-in LED Modeling lamp. Brightness level can be set at five different levels, and can be controlled either by the dedicated button, or by pressing the shutter twice. Additionally, off-camera Speedlite EL-5 (Ver. 2) Receiver unit’s modeling lamps can now be activated and deactivated from a Sender Speedlite EL-5 (Ver. 2) to check its flash effect when using multiple Speedlites. Whether using the lamp for checking where your shadows will fall on a subject, or to aid AF-assist this LED light is incredibly helpful.
Expanded App Controls
Canon’s Camera Connect smartphone app allows users to control the wireless flash settings, shutter release, and check photo results. The user can operate and configure these settings from a smartphone without touching the camera or flash unit(s). This is particularly useful for multi-flash shooting, shooting with flash unit(s) placed in hard-to-reach spots, and shooting with a limited number of assistants. The user can choose the placement and direction of each flash unit, and then use the app to adjust the light intensity while checking the shooting results on the smartphone screen.
Dust and Moisture Resistance
In addition to the new rubber seal around the shoe locking mechanism, the EL-5 achieves dust and moisture-resistant performance equivalent to that of EOS R5. To ensure airtightness, sealing is applied to the joints of the exterior cover. Even when shooting under difficult conditions, dust and moisture is prevented from penetrating the unit body.
